Distribution Boards
Distribution boards expand the number of connections available for attaching toolheads. They can either extend your CAN network or function as a USB hub. Some distribution boards also include an additional MCU, providing access to extra inputs and outputs such as filament runout switches, thermistors, RGB lighting, and other peripherals.
CAN Bus
For CAN bus communication, it is highly recommended to follow Esoterical's CAN Bus Guide, which provides clear, step-by-step instructions for flashing and configuring the host computer, MCU and toolhead boards.
USB
For USB communication it is recommended to use the manufacturer's documentation to guide you through flashing and configuring the distribution board.
-

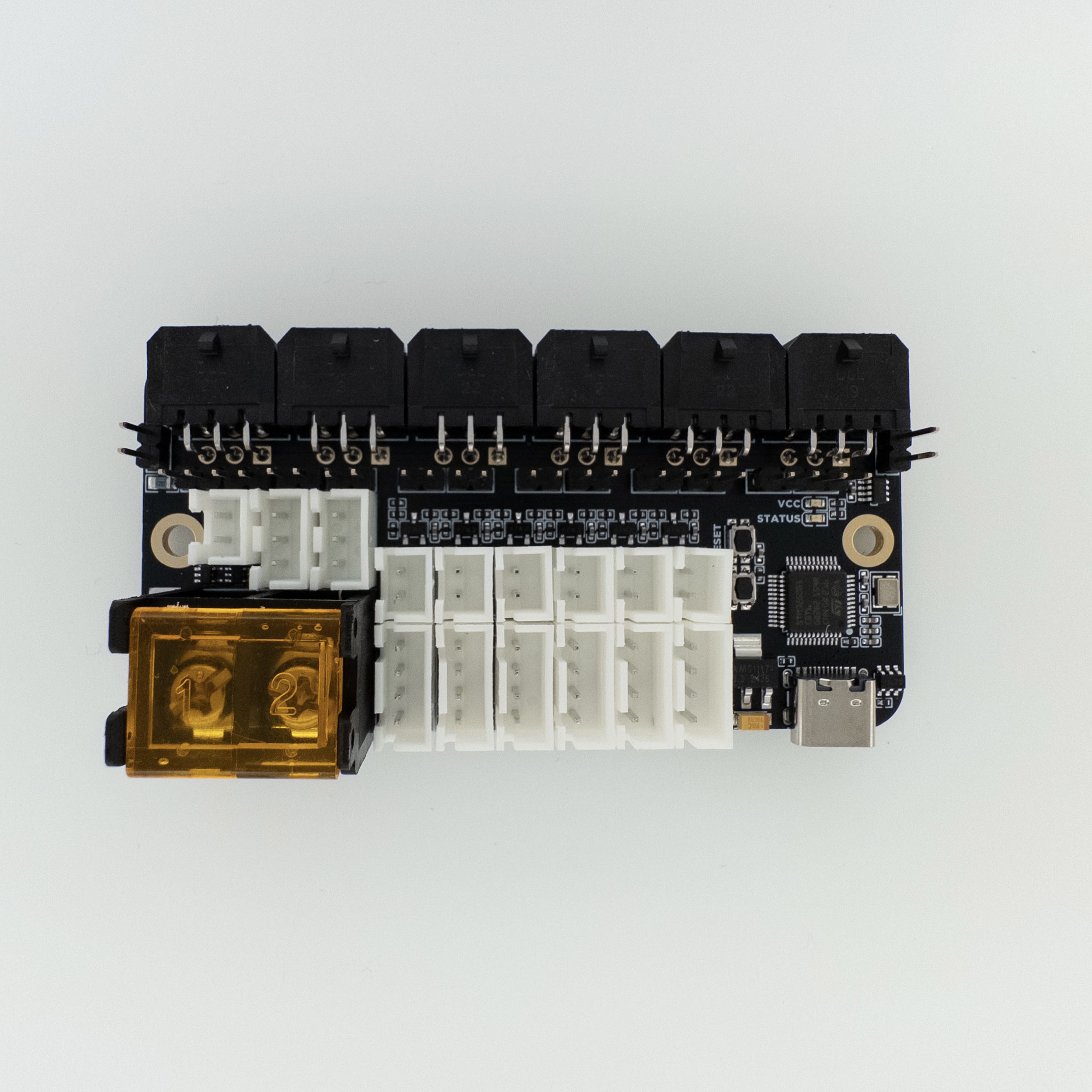

Birdsnest CAN¶
Manufacturer: Isik Tech
Protocol: CAN
Outputs: 6
IO: 12
RGB: 2
Thermistor: 6
-

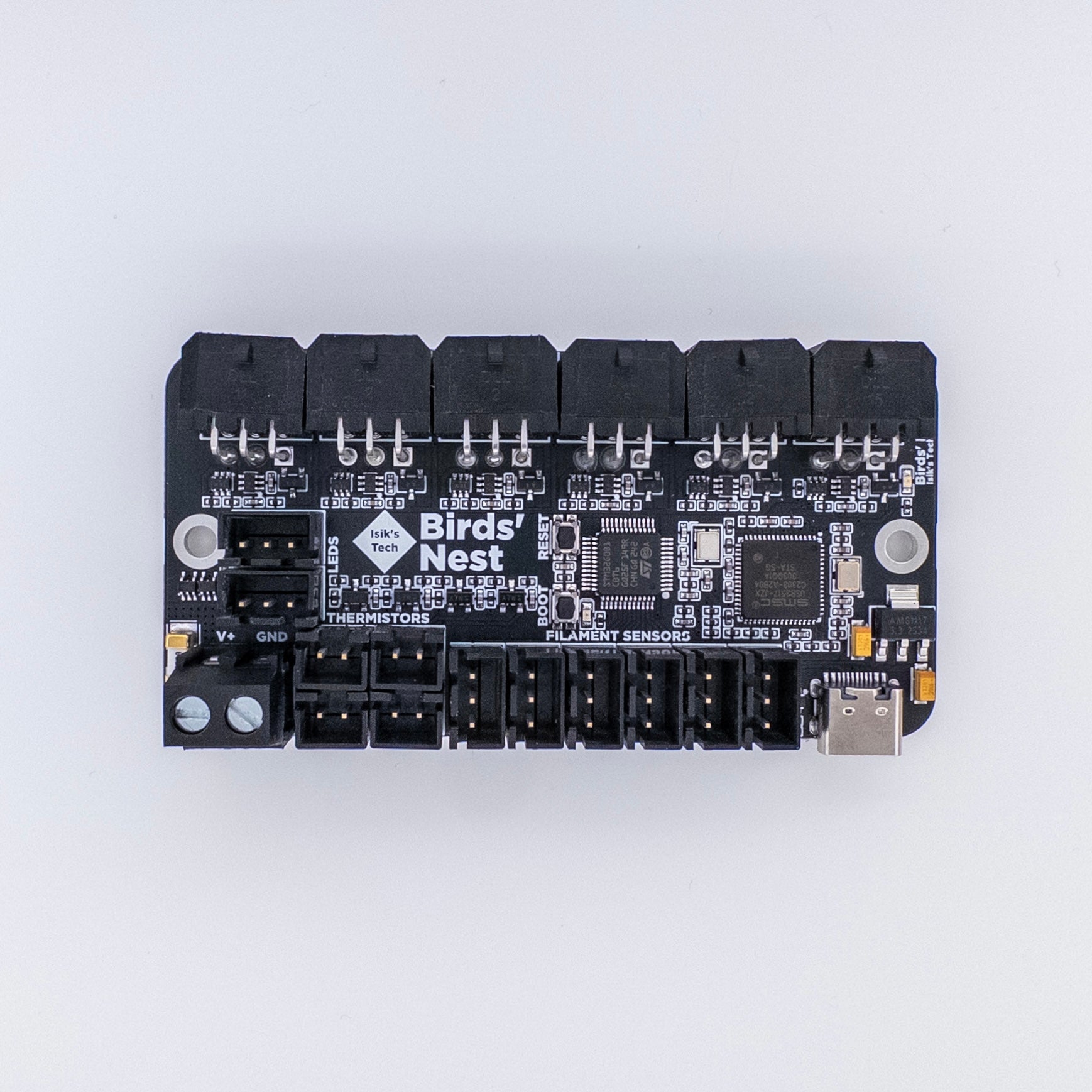

Birdsnest USB¶
Manufacturer: Isik Tech
Protocol: USB
Outputs: 6
IO: 6
RGB: 2
Thermistor: 4
-

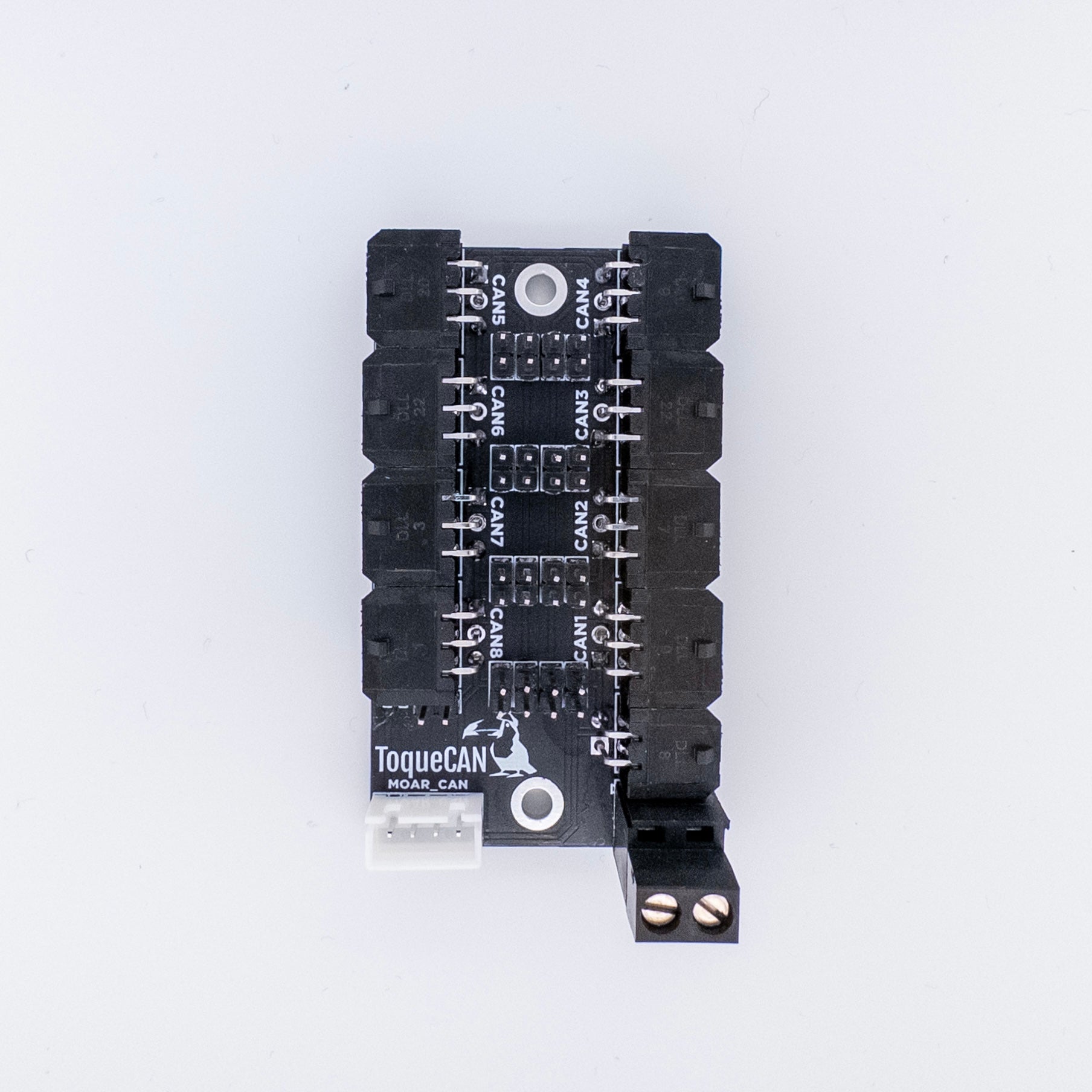

Moar CAN¶
Manufacturer: Isik Tech
Protocol: CAN
Outputs: 8
-

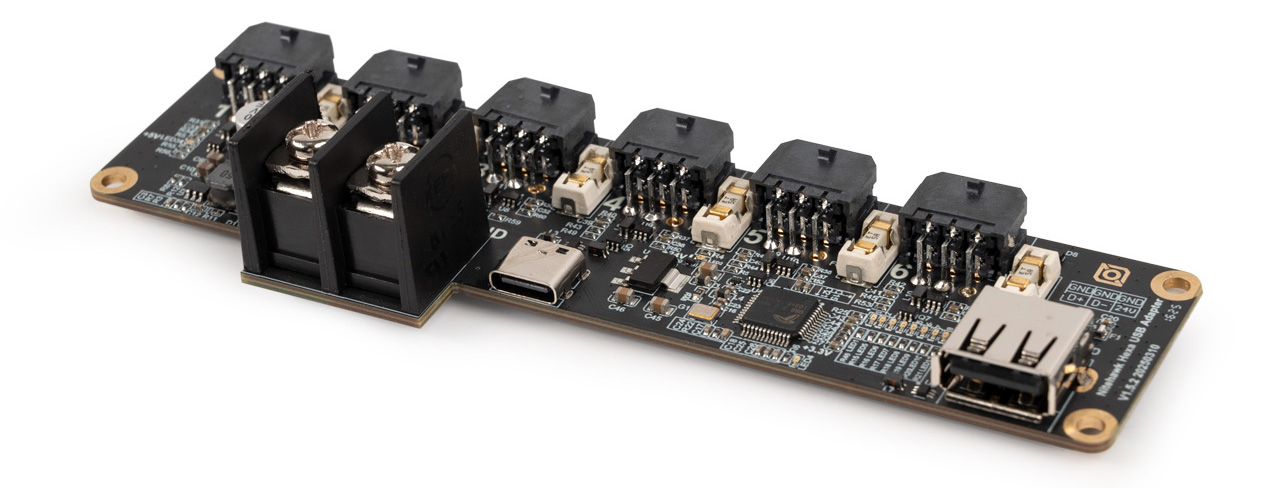

Nitehawk Hexa¶
Manufacturer: LDO
Protocol: USB
Outputs: 6
-
Hexa Fusion¶
Manufacturer: Fysect
Protocol: CAN
Outputs: 6
-

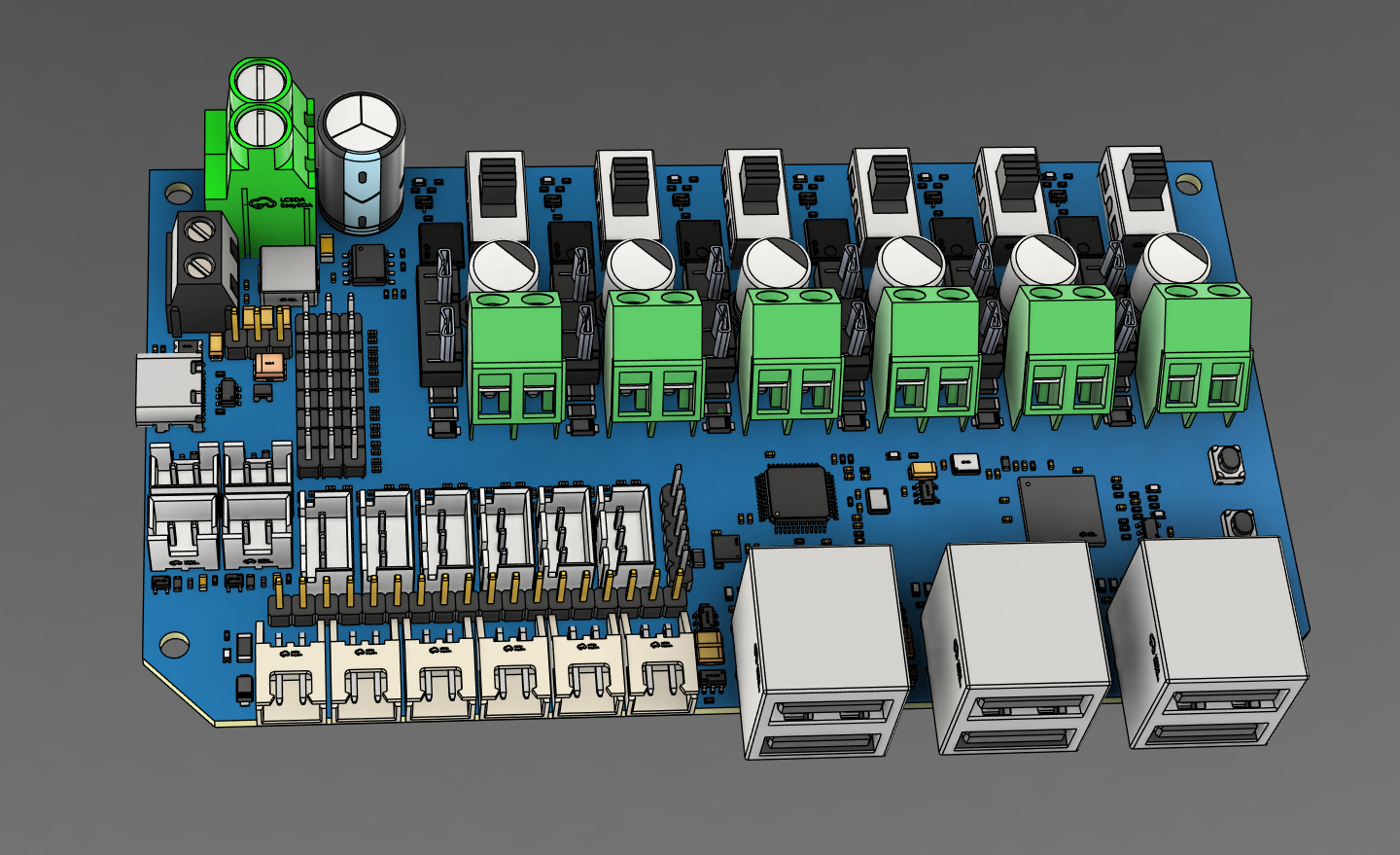

Hexa Distro Fusion¶
Manufacturer: Fysect
Protocol: USB/CAN
Outputs: 6
Type-A USB: 6
Fan: 6
IO: 6
RGB: 6
Thermistor: 4
-

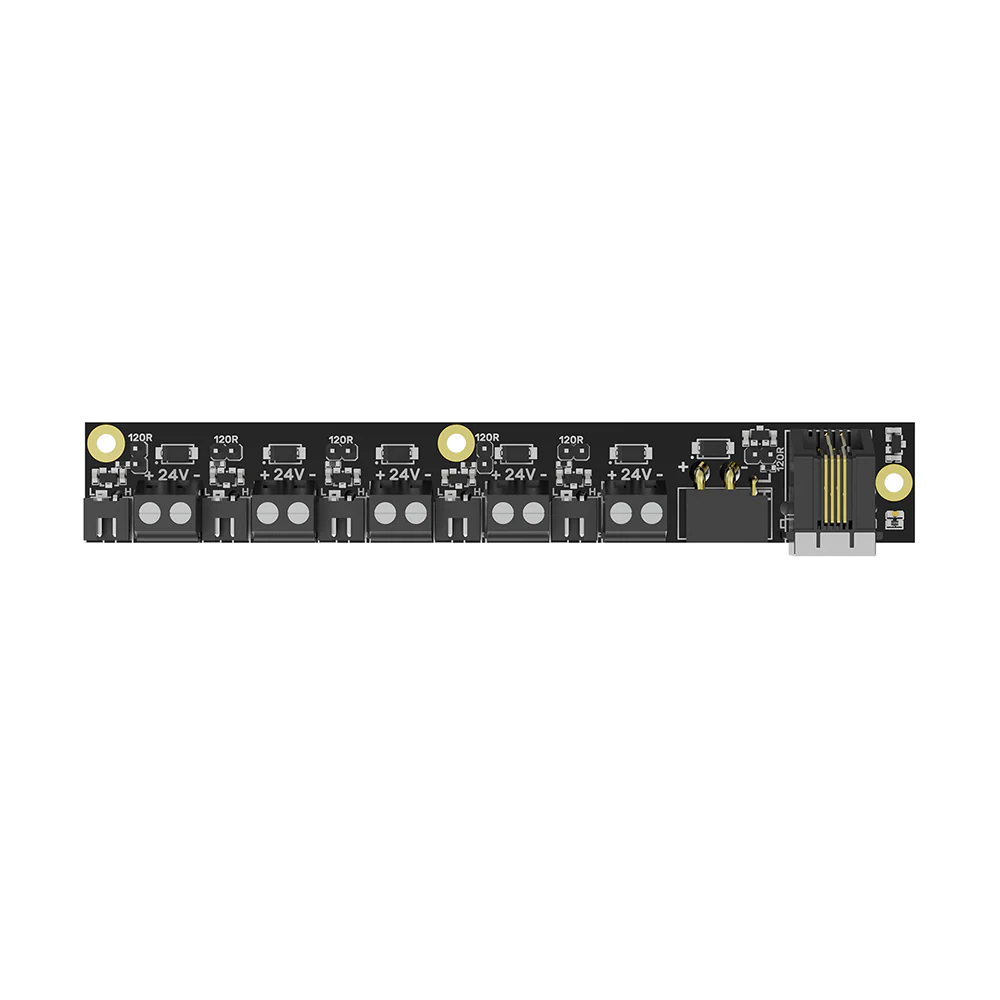

CEB¶
Manufacturer: BigTreeTech
Protocol: CAN
Outputs: 5
-
CAN Bus Expand Board¶
Manufacturer: Mellow
Protocol: CAN
Outputs: 4
