Toolhead Boards
Each toolhead in a multi-tool setup requires its own dedicated toolhead board. Without these boards, the wiring for heaters, sensors, fans, and motors would quickly become unmanageable as the number of tools increases. Toolhead boards consolidate all of a tool’s connections into a single, organized interface, preventing the wiring complexity from becoming overwhelming and greatly simplifying installation, maintenance, and troubleshooting.
CAN Bus
For CAN bus communication, it is highly recommended to follow Esoterical's CAN Bus Guide, which provides clear, step-by-step instructions for flashing and configuring the host computer, MCU and toolhead boards.
USB
For USB communication it is recommended to use the manufacturer's documentation to guide you through flashing and configuring the toolhead boards.
-
Nitehawk36¶
Manufacturer: LDO
Protocol: USB
Fan Outputs: 3
Fan Voltage: 5V/24V
Thermistor: 1
RGB: 1
Probe: 1
Filament Sensor: 1
-

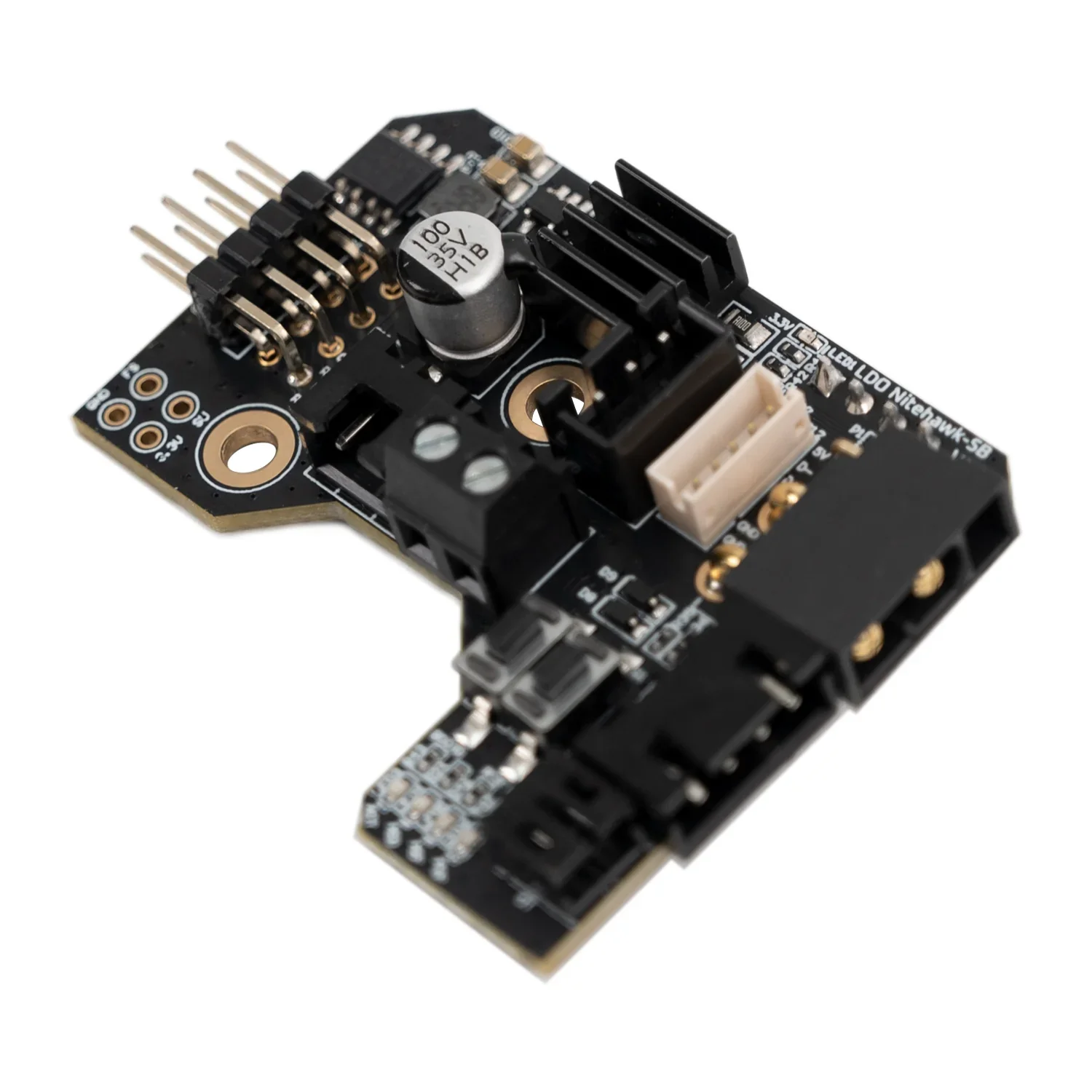

NitehawkSB¶
Manufacturer: LDO
Protocol: USB
Fan Outputs: 2
Fan Voltage: 5V/24V
Thermistor: 2
RGB: 1
Probe: 1
Filament Sensor: 0
-

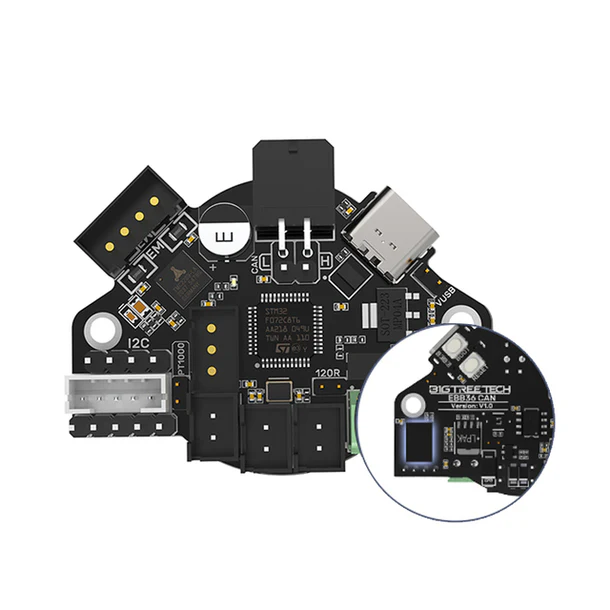

EBB36 V1.2¶
Manufacturer: BigTreeTech
Protocol: CAN
Fan Outputs: 2
Fan Voltage: 24V
Thermistor: 1
RGB: 1
Probe: 1
Filament Sensor: 0
-

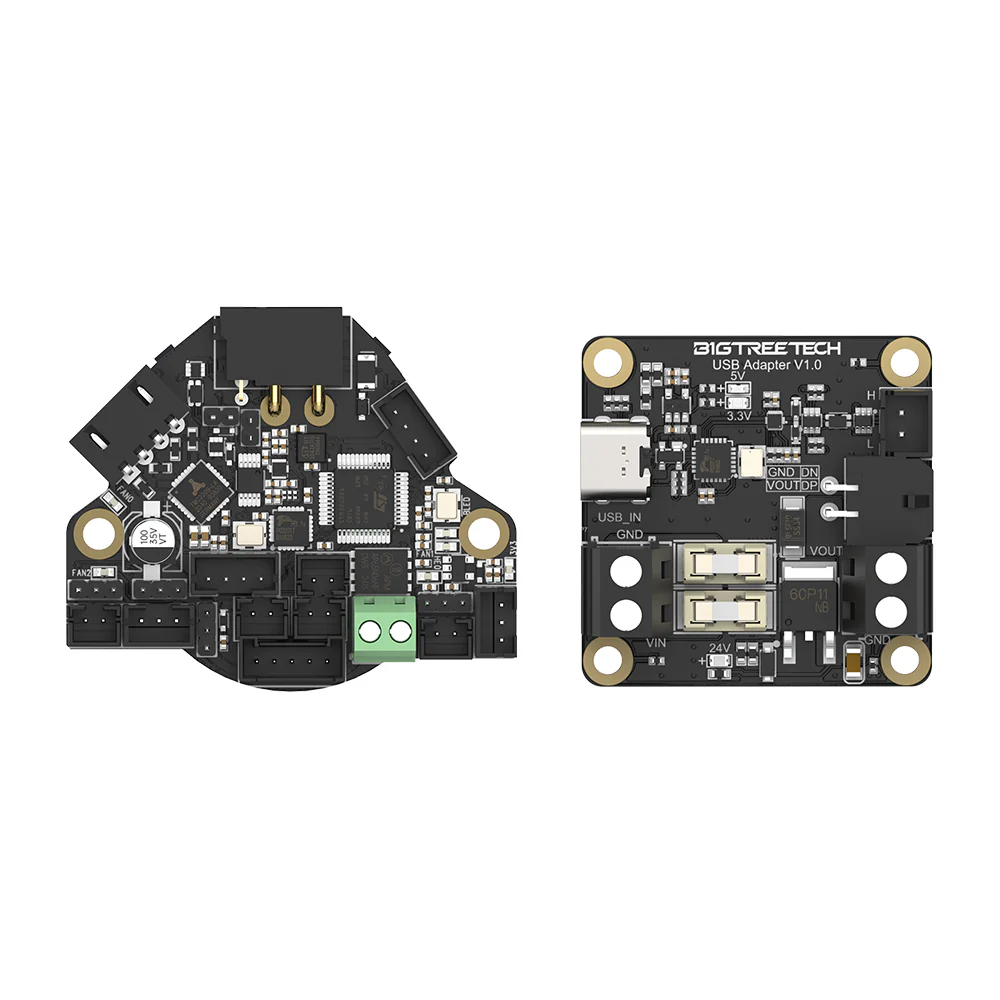

EBB36 Gen2¶
Manufacturer: BigTreeTech
Protocol: CAN/USB
Fan Outputs: 3
Fan Voltage: 5V/24V
Thermistor: 1
RGB: 1
Probe: 1
Filament Sensor: 1
-

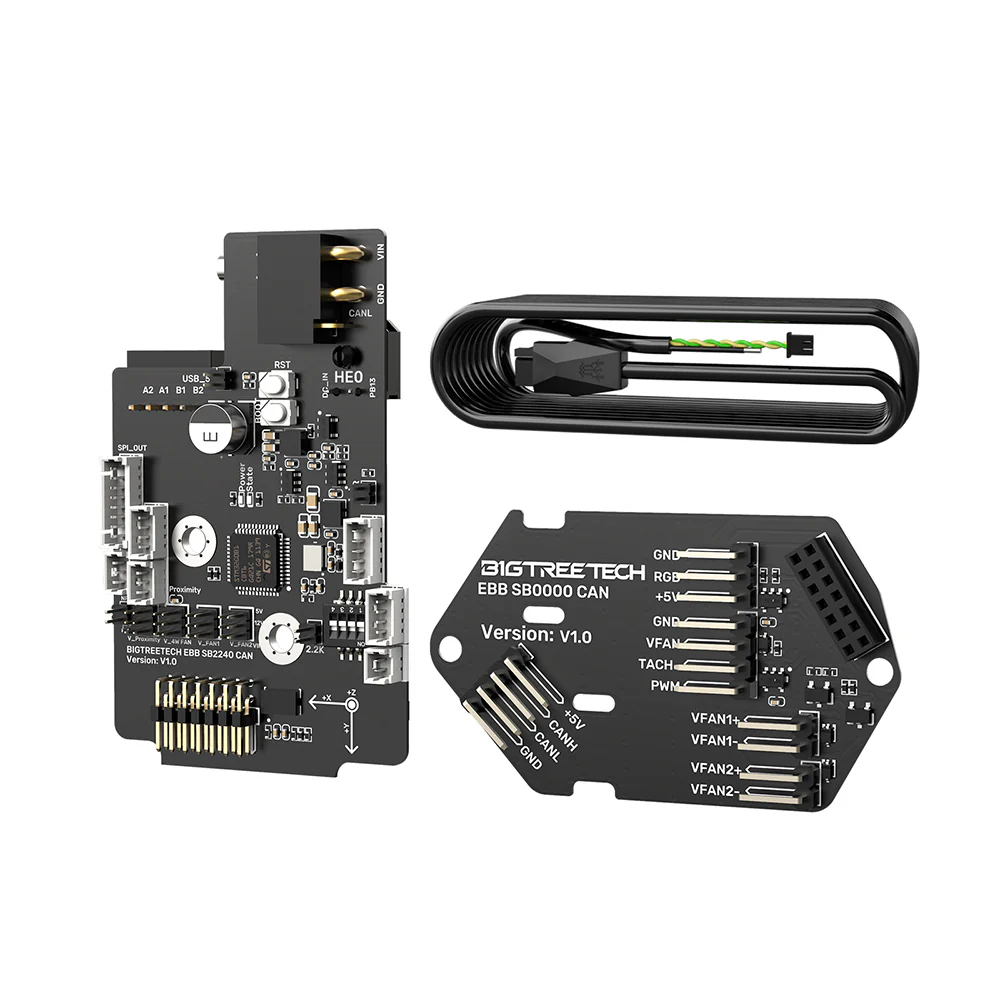

SB2209¶
Manufacturer: BigTreeTech
Protocol: CAN, USB
Fan Outputs: 2
Fan Voltage: 5V/12V/24V
Thermistor: 1
RGB: 1
Probe: 1
Filament Sensor: 1
-

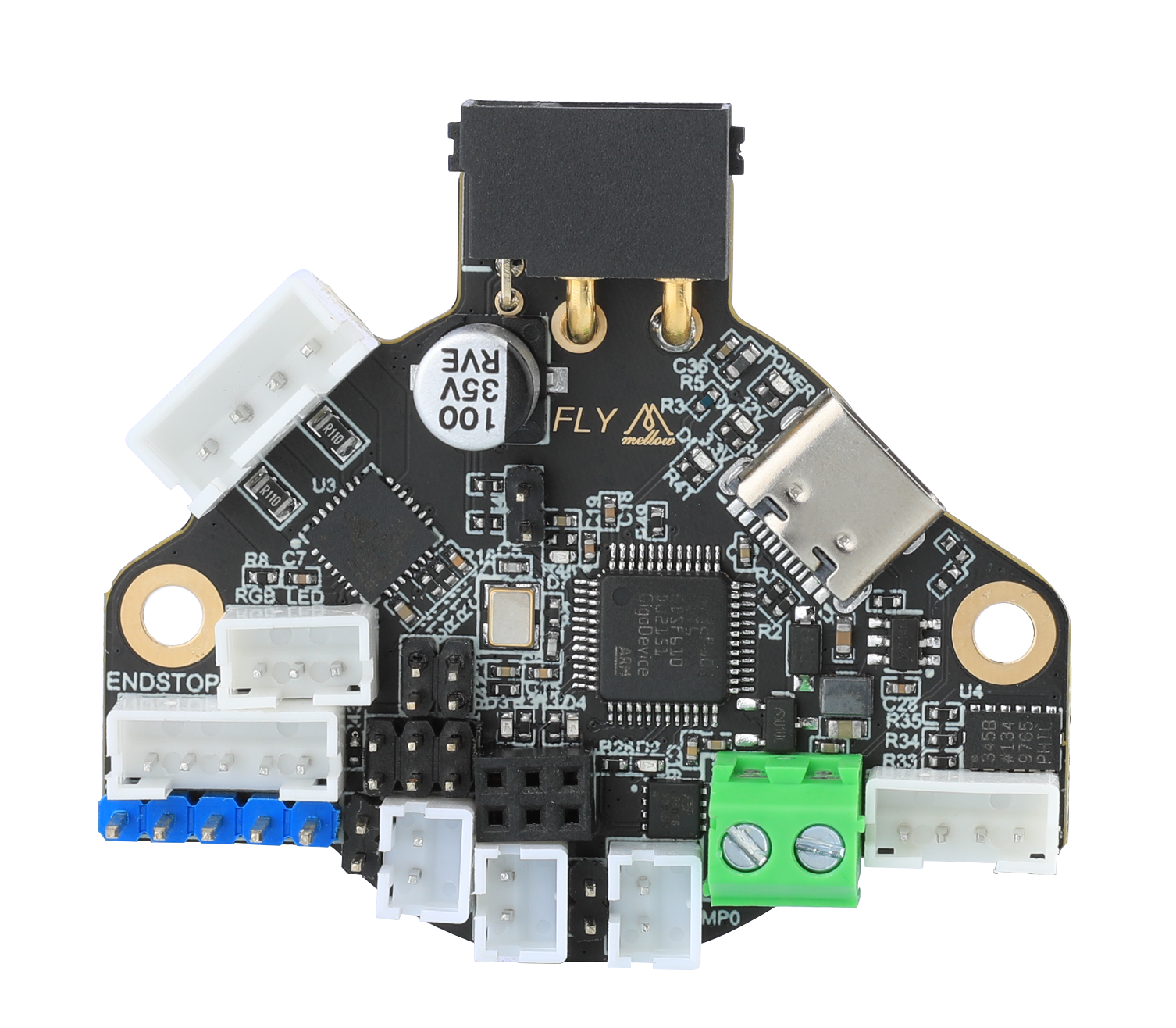

SHT36 V2¶
Manufacturer: Mellow
Protocol: CAN
Fan Outputs: 2
Fan Voltage: 5V/12V/24V
Thermistor: 1
RGB: 1
Probe: 1
Filament Sensor: 1
-

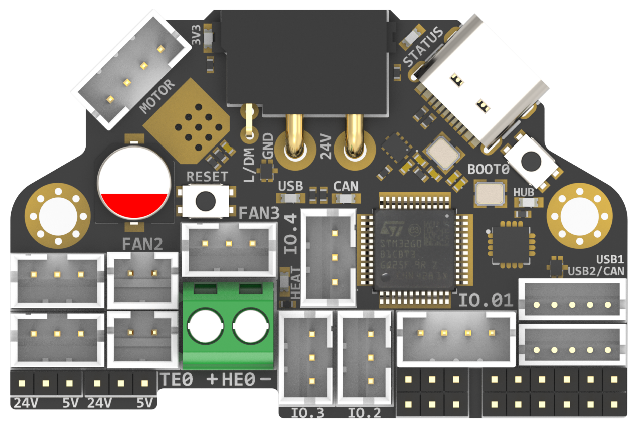

H36 Combo¶
Manufacturer: Fysetc
Protocol: CAN/USB
Fan Outputs: 4
Fan Voltage: 5V/24V
Thermistor: 1
RGB: 2
Probe: 1
Filament Sensor: 2
